AT-5020

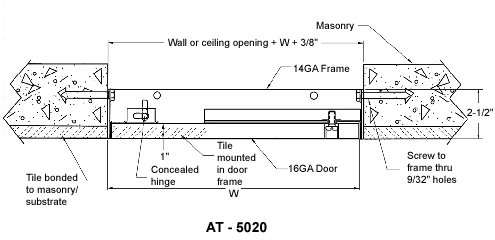

The AT-5020 recessed access door is designed for flush installation in walls or ceilings when it is required to conceal the door panel, which is recessed 1".
|
Material:
|
Steel or Stainless Steel: 16 gage door
|
|
|
Door:
|
Recessed 1".
|
|
|
Frame:
|
14 gage mounting frame.
|
|
|
Hinge:
|
Concealed, pivoting rod type.
|
|
|
Latch:
|
Flush to surface, screwdriver operated cam latch. Also available: cylinder lock and key, allen head cam latch, spanner head cam latch.
|
|
|
Finish:
|
Steel: 5-stage iron phosphate preparation with prime coat of gray baked enamel.
|
STANDARD SIZE ACCESS DOORS (special sizes available upon request)
| NOMINAL DOOR SIZE W&H | CEILING OR WALL OPENING | NO. OF LATCHES | WEIGHT PER DOOR AT-5020 | |||
|---|---|---|---|---|---|---|
| INCHES | mm | INCHES | mm | lbs. | kg. | |
| 12x12 | 305x305 | 12-3/8x12-3/8 | 314x314 | 1 | 7 | 3.2 |
| 18x18 | 457x457 | 18-3/8x18-3/8 | 467x467 | 2 | 13 | 5.9 |
| 24x24 | 610x610 | 24-3/8x24-3/8 | 619x619 | 2 | 21 | 9.5 |
| 24x36 | 610x914 | 24-3/8x36-3/8 | 619x924 | 4 | 30 | 13.8 |
DW-5015

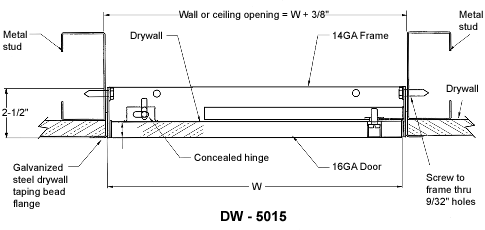

The DW-5015 recessed access door is designed for flush installation in drywall surfaces when it is required to conceal the door panel, which is recessed 1" to receive drywall. The flange of the door is a textured galvanized steel taping bead with pre-punched holes. Drywall compound is applied over the beading at the same time the drywall joints are finished.
|
Material:
|
Steel or Stainless Steel: 16 gage door, 14 gage mounting frame.
|
|
|
Door:
|
Recessed 1".
|
|
|
Frame:
|
Galvanized steel drywall taping bead on all sides.
|
|
|
Hinge:
|
Concealed, pivoting rod type.
|
|
|
Latch:
|
Flush to surface, screwdriver operated cam latch. Also available: cylinder lock and key, allen head cam latch, spanner head cam latch.
|
|
|
Finish:
|
Steel: 5-stage iron phosphate preparation with prime coat of gray baked enamel.
|
STANDARD SIZE ACCESS DOORS (special sizes available upon request)
| NOMINAL DOOR SIZE W&H | CEILING OR WALL OPENING | NO. OF LATCHES | WEIGHT PER DOOR DW-5015 | |||
|---|---|---|---|---|---|---|
| INCHES | mm | INCHES | mm |
|
lbs. | kg. |
| 12x12 | 305x305 | 12-3/8x12-3/8 | 314x314 | 1 | 8.5 | 3.9 |
| 18x18 | 457x457 | 18-3/8x18-3/8 | 467x467 | 2 | 15 | 6.8 |
| 24x24 | 610x610 | 24-3/8x24-3/8 | 619x619 | 2 | 23 | 10.4 |
| 24x36 | 610x914 | 24-3/8x36-3/8 | 619x924 | 4 | 30 | 13.8 |
AP-5010

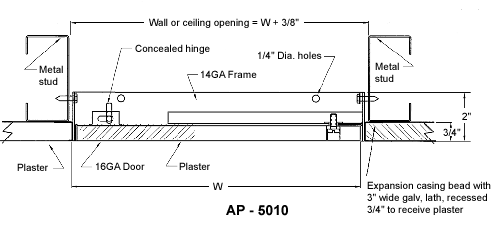

The AP-5010 recessed access door is designed for use in acoustical plaster walls and ceilings. The door is recessed 5/8" and is lined with self-furring lath. An expansion casing bead with 3" wide galvanized lath, included as part of the frame, provides a clean, tight finish between the frame and plaster and also adds reinforcement.
|
Material:
|
Steel or Stainless Steel: 16 gage door, 14 gage mounting frame.
|
|
|
Door:
|
Recessed 5/8" and lined with self-furring galvanized lath. edges.
|
|
|
Frame:
|
Expansion casing bead with 3" wide galvanized lath, recessed 3/4" to receive plaster.
|
|
|
Hinge:
|
Concealed, pivoting rod type.
|
|
|
Latch:
|
Flush to surface, screwdriver operated cam latch. Also available: cylinder lock and key, allen head cam latch, spanner head cam latch.
|
|
|
Finish:
|
Steel: 5-stage iron phosphate preparation with prime coat of gray baked enamel.
|
STANDARD SIZE ACCESS DOORS (special sizes available upon request)
| NOMINAL DOOR SIZE W&H | CEILING OR WALL OPENING | NO. OF LATCHES | WEIGHT PER DOOR AP-5010 | |||
|---|---|---|---|---|---|---|
| INCHES | mm | INCHES | mm | . | lbs. | kg. |
| 12x12 | 305x305 | 12-3/8x12-3/8 | 314x314 | 1 | 8.5 | 3.9 |
| 18x18 | 457x457 | 18-3/8x18-3/8 | 467x467 | 2 | 15 | 6.8 |
| 24x24 | 610x610 | 24-3/8x24-3/8 | 619x619 | 2 | 23 | 10.4 |
| 24x36 | 610x914 | 24-3/8x36-3/8 | 619x924 | 4 | 30 | 13.8 |
