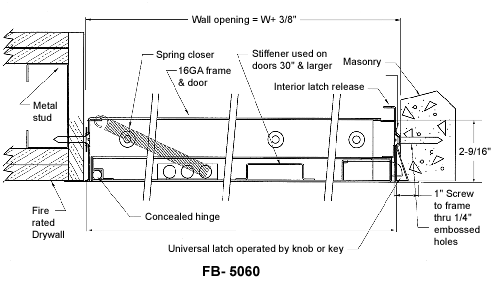

FB-5060
The FB-5060 is approved by Underwriters Laboratories (UL) for 1-1/2 hours "B" label in walls and ULC for 2 hours "B" label in walls. Designed to maintain continuity in a 2-hour fire barrier wall, the FB-5060 should be used whenever it is necessary to provide access in fire rated walls, when temperature rise is not a factor. For drywall applications, this door is available with galvanized steel drywall taping bead flange. (FB-5060-DW)

Specifications

Material:

Steel or Stainless Steel: 16 gage door, 16 gage mounting frame.
Door:

Flush to frame with reinforced edges.
Frame:

Flanged to be 1" wide, mounting frame to have anchor straps. (optional).
Hinge:

Concealed.
Fire Rating:

UL - 1-1/2 hour "B" label. ULC - 2 hour "B" label. (optional)
Latch:

Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim cylinder locks or mortise cylinder locks.
Finish:

Steel: 5-stage iron phosphate preparation with prime coat of gray baked enamel.
Stainless Steel: #4 satin polish.

STANDARD SIZE ACCESS DOORS (special sizes available upon request)

NOMINAL DOOR SIZE
W&H
CEILING OR WALL
OPENING
NO. OF
LATCHES
WEIGHT PER DOOR
FB-5060
INCHES mm INCHES mm
.
lbs. kg.
8x8 203x203 8-3/8x8-3/8 213x213 1 5.5 2.5
10x10 254x254 10-3/8x10-3/8 264x264 1 6.7 2.9
12x12 305x305 12-3/8x12-3/8 365x365 1 8.3 3.8
14x14 355x355 14-3/8x14-3/8 365x365 1 9.5 4.3
16x16 406x406 16-3/8x16-3/8 416x416 1 11.5 5.2
18x18 457x457 18-3/8x18-3/8 467x467 1 14.3 6.5
22x30 560x762 22-3/8x30-3/8 568x772 1 32.5 14.5
22x36 560x914 22-3/8x36-3/8 568x924 2 28 12.7
24x24 610x610 24-3/8x24-3/8 619x619 1 20.3 9.2
24x36 610x914 24-3/8x36-3/8 619x924 2 28.5 12.9
24x48 610x1220 24-3/8x48-3/8 619x1229 2 34 10.6
30x30 762x762 30-3/8x30-3/8 772x772 2 28.5 12.9
36x36 914x914 36-3/8x36-3/8 924x924 2 38 17.2
36x48 914x1220 36-3/8x48-3/8 924x1229 2 47.5 21.5



Back To Access Doors Main Page
FW-5050
The FW-5050 is a fire rated access door approved for use in walls and ceilings. For walls, this door has a Underwriters Laboratories (UL and ULC), 1-1/2 hour "B" label, with a maximum temperature rise of 250 degrees after 30 minutes. This door should be used in walls when temperature rise or heat transmission is a factor.

For fire rated ceilings, this door has been approved by Warnock Hersey International for 3 hours (max. size to 24" X 36"). For drywall applications, this door is available with a galvanized steel drywall taping bead flange. (FW-5050-DW)

Specifications

Material:

Steel or Stainless Steel: 20 gage door, 16 gage mounting frame.
Door:

Filled with 2" thick fire rated insulation.
Frame:

Flange to be 1" wide, mounting frame to have anchor straps (optional).
Hinge:

Concealed.
Fire Rating:

Walls - UL/ULC 1-1/2 hour "B" label with 250 degree temp. rise. Ceilings - Warnock Hersey International - 3 hours.
Latch:

Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for mortise cylinder locks.
Finish:

Steel: 5-stage iron phosphate preparation with prime coat of gray baked enamel.
Stainless Steel:  #4 satin polish.

STANDARD SIZE ACCESS DOORS(special sizes available upon request)

NOMINAL DOOR SIZE
W&H
CEILING OR WALL
OPENING
NO. OF
LATCHES
WEIGHT PER DOOR
FW-5050
INCHES mm INCHES mm
.
lbs. kg.
8x8 203x203 8-3/8x8-3/8 213x213 1 8 3.6
10x10 254x254 10-3/8x10-3/8 264x264 1 9 4.1
12x12 305x305 12-3/8x12-3/8 365x365 1 10 4.8
14x14 355x355 14-3/8x14-3/8 365x365 1 12 5.4
16x16 406x406 16-3/8x16-3/8 416x416 1 15 6.8
18x18 457x457 18-3/8x18-3/8 467x467 1 20 9.1
22x30 560x762 22-3/8x30-3/8 568x772 1 32 14.5
22x36 560x914 22-3/8x36-3/8 568x924 2 35 15.9
24x24 610x610 24-3/8x24-3/8 619x619 1 28 12.7
24x36 610x914 24-3/8x36-3/8 619x924 2 38 18.1
24x48 610x1220 24-3/8x48-3/8 619x1229 2 48 21.3
30x30 762x762 30-3/8x30-3/8 772x772 2 38 18.1
36x36 914x914 36-3/8x36-3/8 924x924 2 54 24.5
36x48 914x1220 36-3/8x48-3/8 924x1229 2 76 34.5



Back To Access Doors Main Page
An Upswing
Fire Rated Access Door!
FW-5050-UP

The FW-5050-UP is a fire rated inward opening access door approved for use in ceilings. This door has been approved by Warnock Hersey International for 3 hours (Available in 3 sizes 24x24, 22x36 & 24x36).

Specifications

Material:

Steel or Stainless Steel: 14 gage door, 14 gage mounting frame.
Door:

Flush to edge of frame.
Frame:

Expansion casing bead with 3" wide galvanized lath, recessed 3/4" to receive plaster.
Hinge:

Continuous, concealed.
Latch:

Stainless Steel screwdriver operated cam latch. Also available: cylinder lock and key, allen head cam latch, spanner head cam latch.
Finish:

teel: 5-stage iron phosphate preparation with prime coat of gray baked enamel.
Stainless Steel: #4 satin polish.
